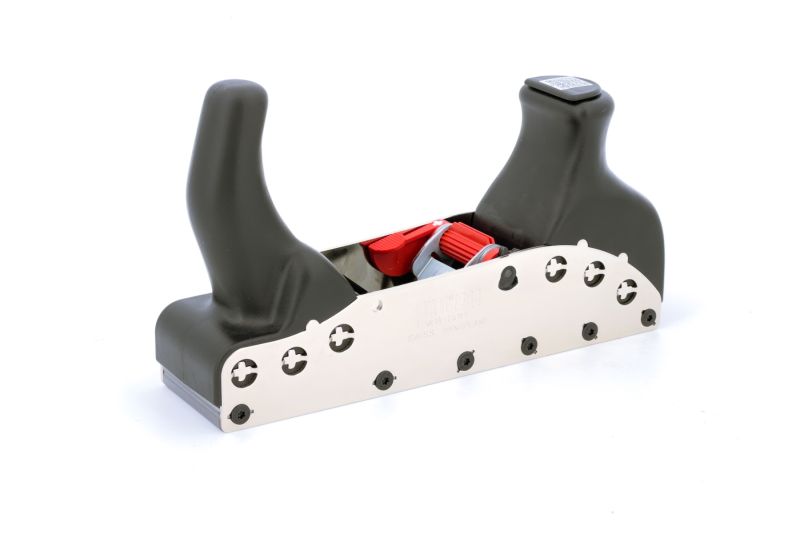

RALI 220 Evolution N+
Description
The new premium hand plane now features a 4th adjustment to fine-tune blade parallelism.
It incorporates all the features of the 220 EVOLUTION N model, including the innovative instant blade change system.
Adjusting blade parallelism makes it possible to compensate for the inevitable play between the plane’s various high-precision mechanical components. This 4th adjustment is essential for very fine finishing work and surface planing. It ensures a perfectly consistent shaving thickness.
The RALI 220 Evolution N + plane remains fully operational both in the workshop and on site, thanks to blade reversal and the 4 adjustments that can be carried out in under 10 seconds.
The absence of sharpening is particularly appreciated thanks to the time saved. The quality and longevity of original RALI blades ensure a tool that is always sharp and ready for use. Its ease of use and precision have been approved by the most demanding professionals.
No more on-site issues!
No more sharpening
Unique patented blade-change system in seconds. The blades supplied are bi-cut and reversible with a factory-set cutting edge.

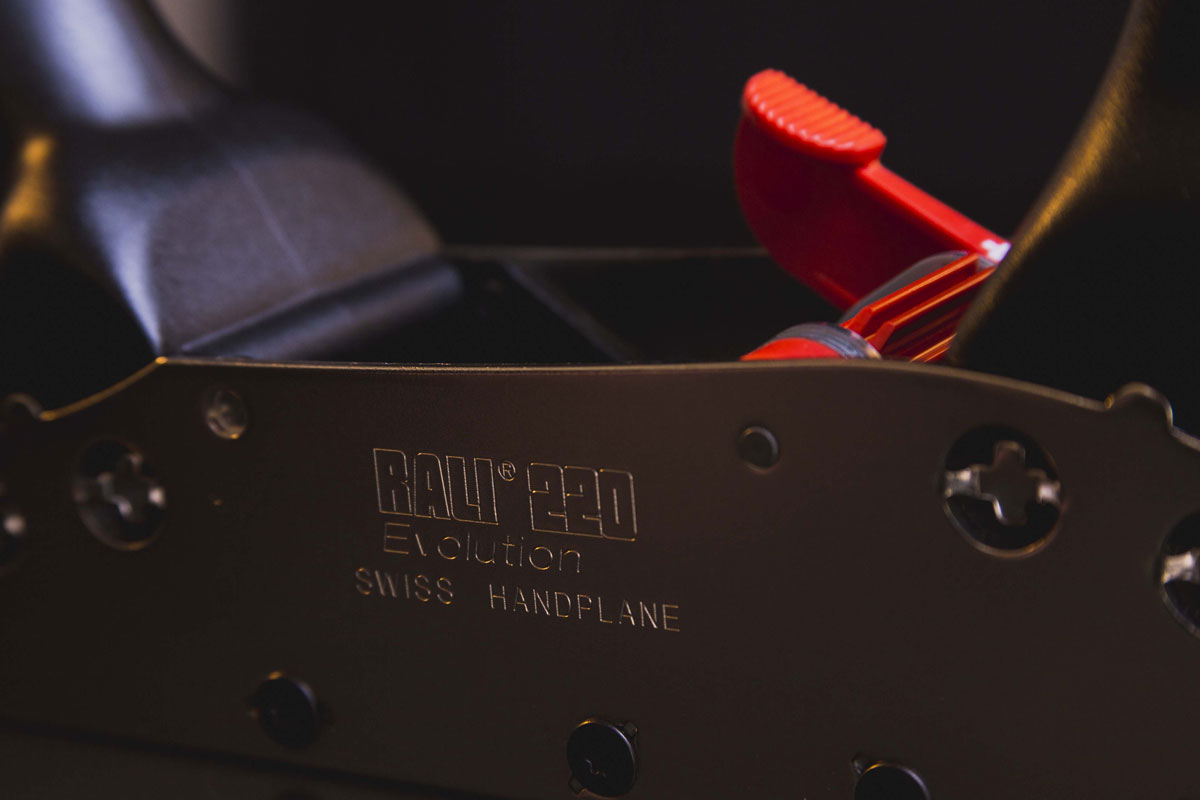

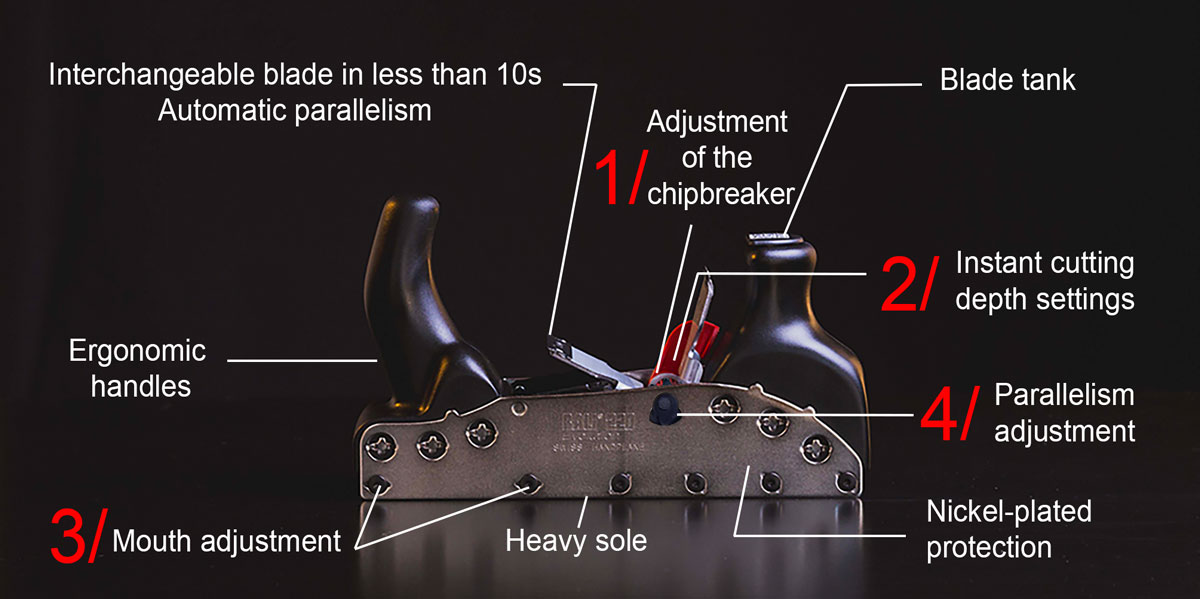

Setting 1:
cutting depth
Instant cutting depth adjustment with red lever. There's no need to lay your plane down when you set it up. Simply retract the blade to the base.

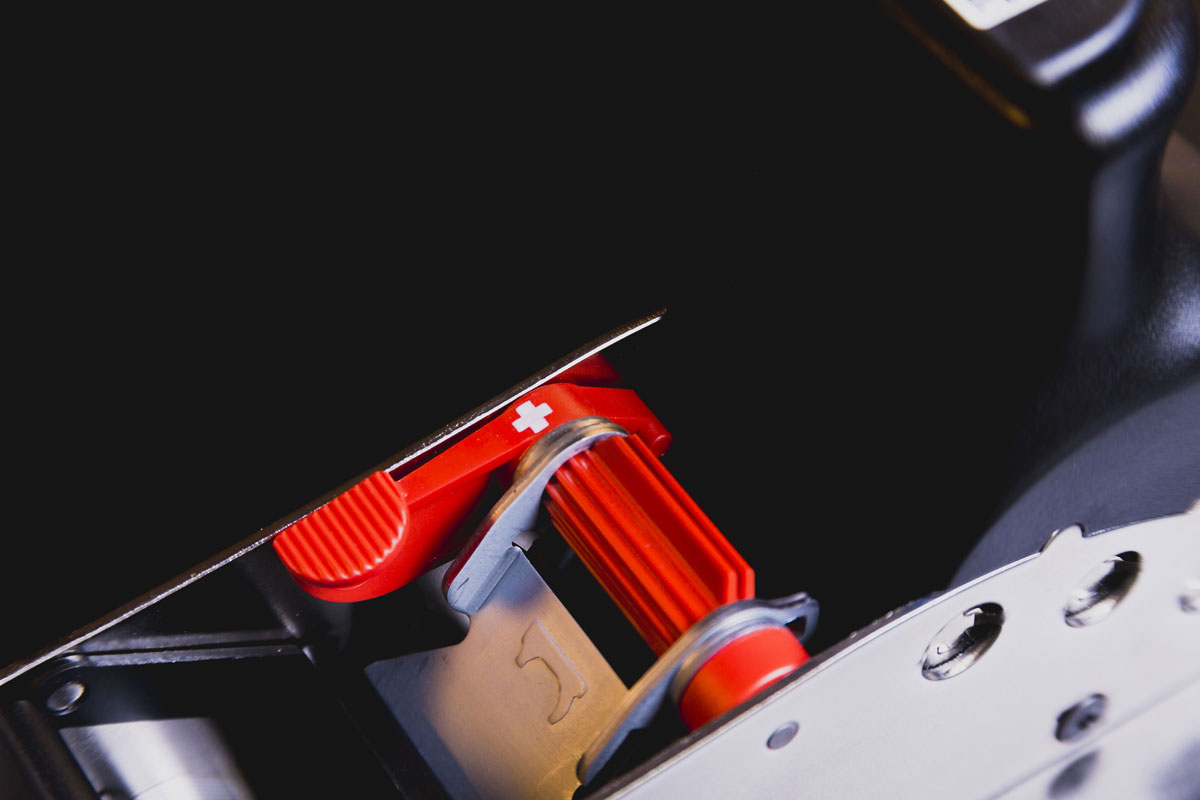

Setting 2 :
the chipbreaker
This adjustment is made with the central red knob in a matter of seconds, for perfect roughing and finishing.
Réglage 3 :
la lumière

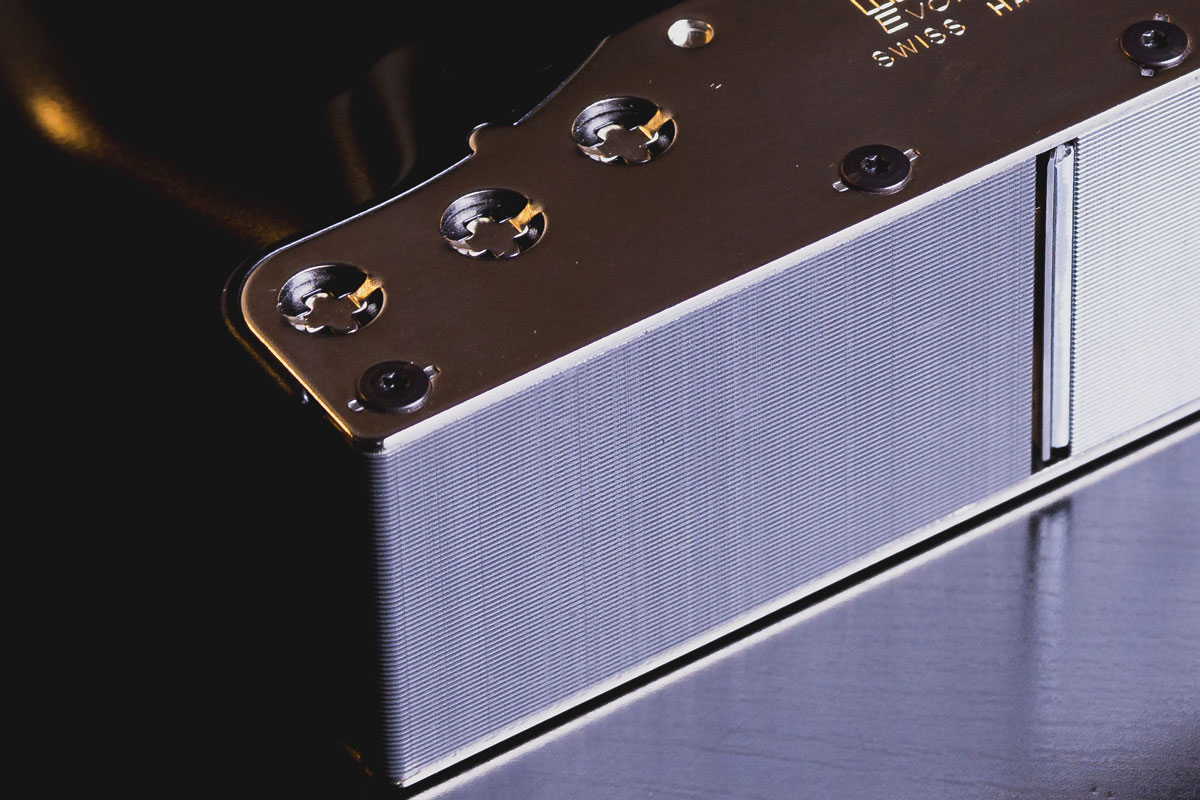

The unique design of our soleplate makes it very easy to adjust the mouth by simply unscrewing the 3 screws on the front soleplate. Ideal for avoiding jamming on green wood, for example.

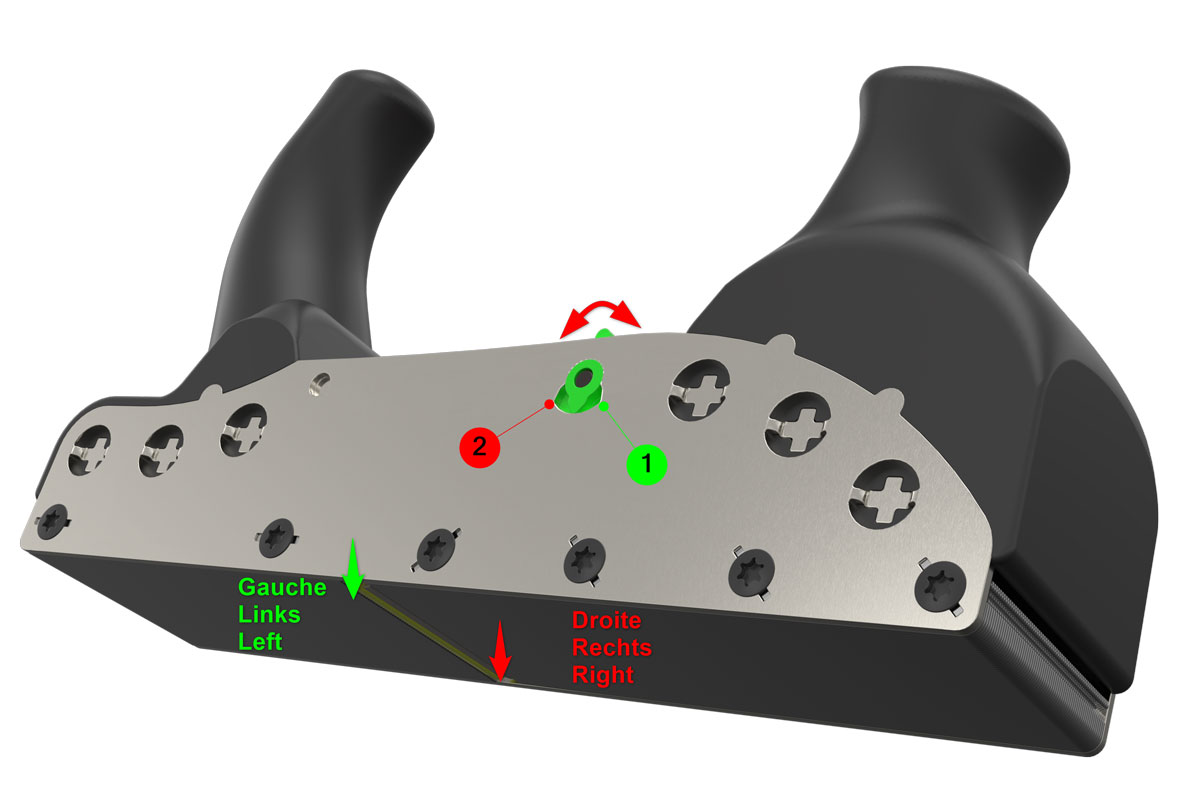

Adjustment 4 :
parallelism
By simply turning the small knurled wheel on the side, you can adjust the blade parallelism to adapt to your specific woodworking applications.
Self-adjusting blade
The original RALI blades are automatically locked in place and aligned parallel to the base by means of cleverly placed coded pins on the chipbreakers.
Very, very long blade life
1 mile of chips with a single blade: this is the test carried out at the factory with a chrome blade dedicated to working with soft to medium woods.
** 4 blades are supplied with the plane 220 Evolution N

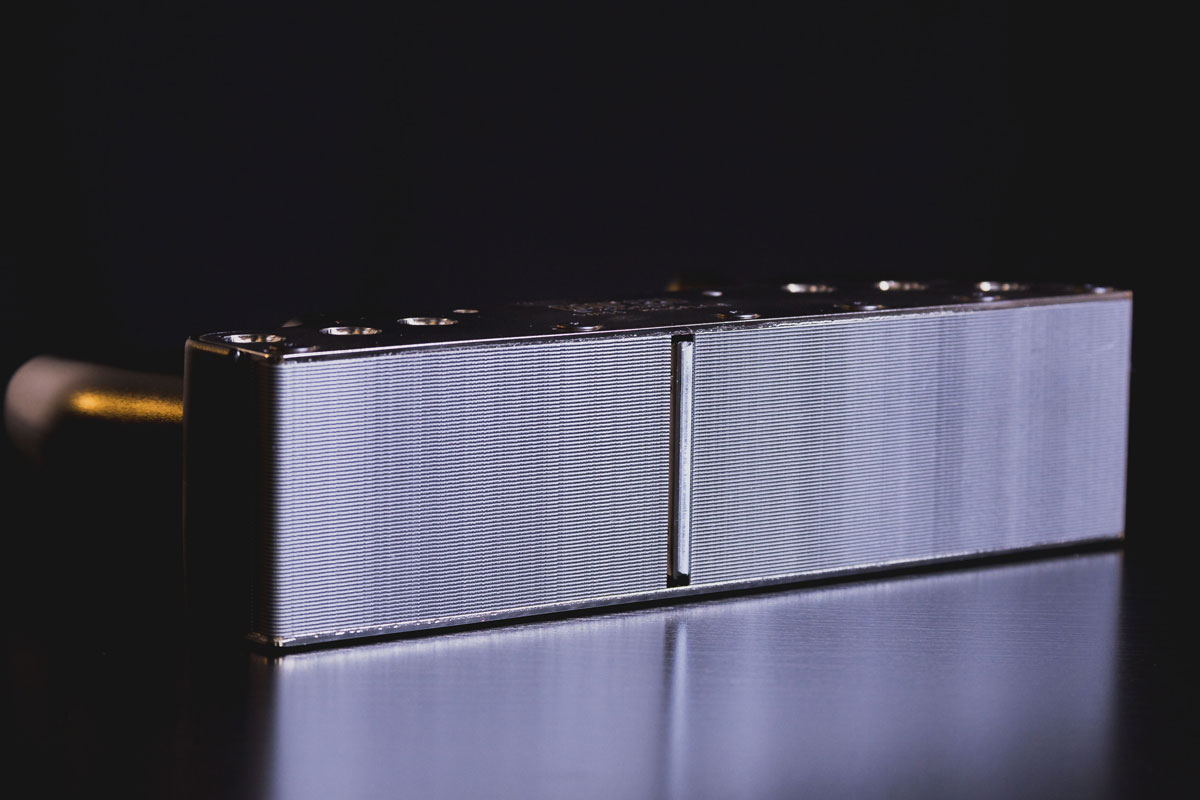

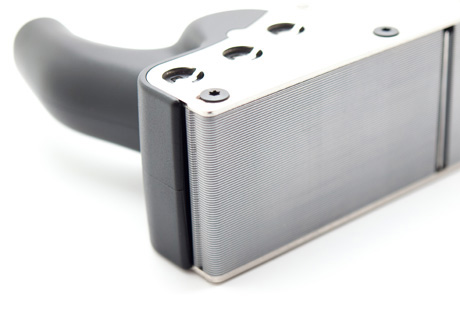

Innovative heavy sole
RALI has designed a unique two-part lamellar sole. This significantly reduces friction with the material. The sole is adjustable and can be repaired in the event of impact.
Important: Sole calibration before first use OR after any impact. View the procedure >

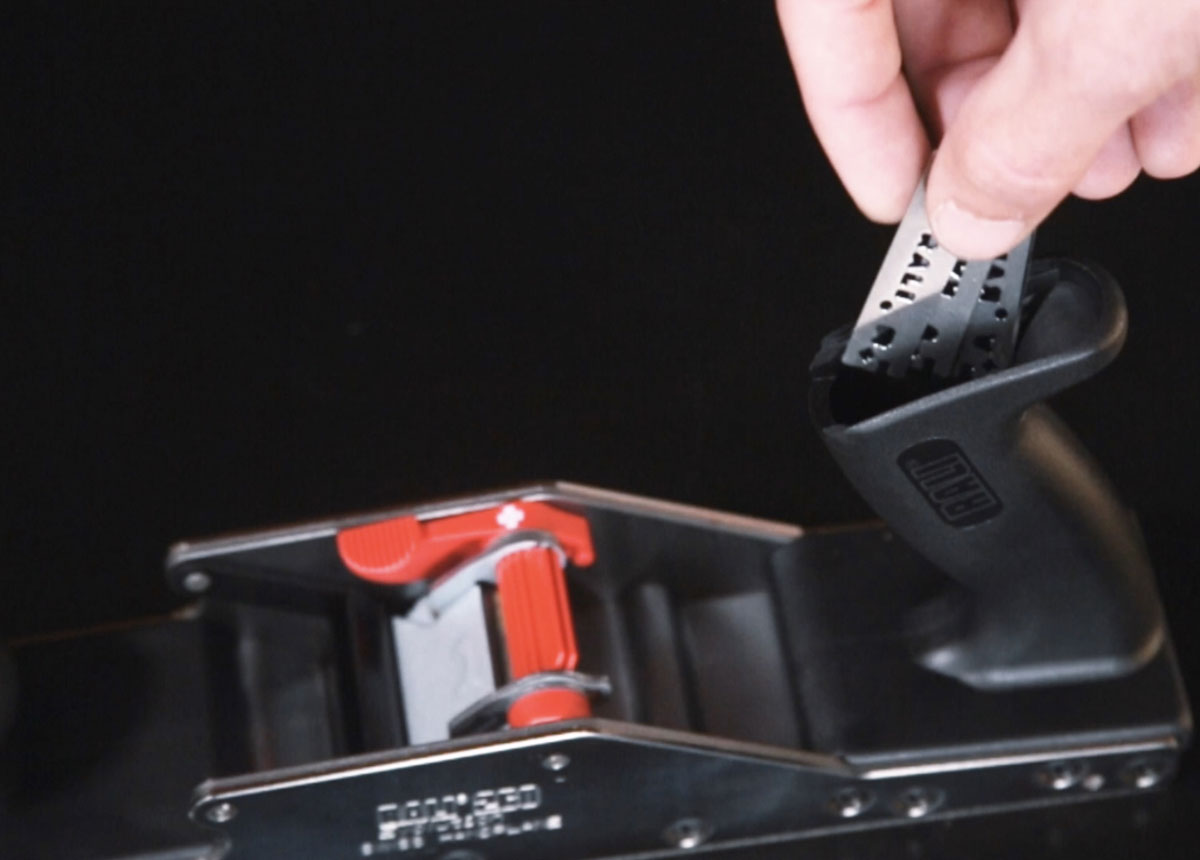

A clever little compartment
No need to search for your blades in the toolbox or in a locker, a small compartment in the rear handle allows you to store several blades.
Ideal for jobsites, your tools are always ready for use.
5-year warranty offered
On the 220 Evolution N plane, we offer a 5-year warranty instead of 2, as on all tools in this range. As a manufacturer, we can supply all spare parts for your future plane.
Technical sheet handplane RALI 220 Evolution N+
| Product code | 109504 |
| Color | Black |
| Side | Nickel |
| Length | 220 mm |
| Type | European |
| Sole | Heavy |
| Parallelism | Adjustable |
| Cutting depth | Adjustable |
| Blade type | Chrome Steel |
| Included | 4 chrome steel blades |
| Use | Professionnal |
| Weight | 1.191000 |
| L x H x W | 230x215x60 |
| function | Surfacing plane |
| Chipbreaker | Adjustable |
| Mouth | Adjustable |
| Double-edged blade | Yes |
| Resharpenable | No |
| Country of Manufacture | Switzerland |
