RALI B30 Evolution N

This is the Bull nose plane with its blade placed on the front of the tool. Ideal for finishing

Skip to the beginning of the images gallery

Description
Key points
Demonstration
Technical sheet

Description

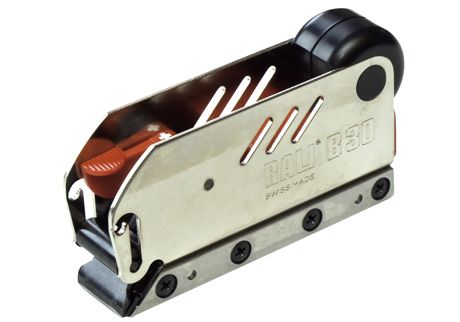

The RALI B30 bull nose plane is the perfect tool for end finishing. It's a one-handed Bull nose plane, which sits perfectly in your palm, allowing perfect support and guidance of the tool.

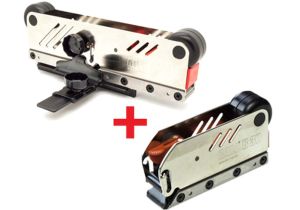

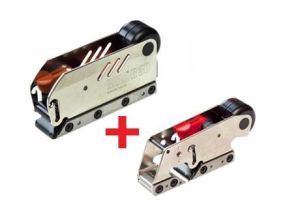

The special feature of this rabbet plane is that the blade is positioned on the front of the tool, enabling you to finish rabbets or work in corners. It complements the G30 and G03 Evolution N rabbets whose blade is located in the middle of the sole.
The RALI B30 rabbet plane has a heavy sole. The 30mm blades are compatible with all other RALI rabbet planes.

Key points handplane RALI B30 Evolution N

No more sharpening

Unique patented blade-change system in seconds. The blades supplied are bi-cut and reversible with a factory-set cutting edge.

Setting 1:
cutting depth

Instant cutting depth adjustment with red lever. There's no need to lay your plane down when you set it up. Simply retract the blade to the base.

Ideal grip

Thanks to its round, rear-mounted handle, the RALI B30 fits perfectly in the palm of the hand, with the finger positioned on the front for optimum tool guidance.

Blade always parallel

The original RALI blades are automatically locked in place and aligned parallel to the base by means of cleverly placed coded pins on the chipbreakers.

Very, very long blade life

1600m of chips with a single blade: this is the test carried out at the factory with a chrome blade dedicated to working with soft to medium woods.

Innovative heavy sole

RALI has designed a unique lamellar sole. This significantly reduces friction with the material. The sole is adjustable and can be repaired in the event of impact.

A clever little compartment

No need to search for your blades in the toolbox or in a locker, a small compartment in the rear handle allows you to store several blades. Ideal for jobsites, your tools are always ready for use.

5-year warranty offered

We offer a 5-year warranty instead of 2.

As a manufacturer, we can supply all spare parts for your future plane.

Demonstration of handplane RALI B30 Evolution N

Technical sheet handplane RALI B30 Evolution N

Product code	106142
Weight	0.577000
L x H x W	150x40x80
function	Rebate plane
Chipbreaker	Fixed
Double-edged blade	Yes
Resharpenable	No
Country of Manufacture	Switzerland
